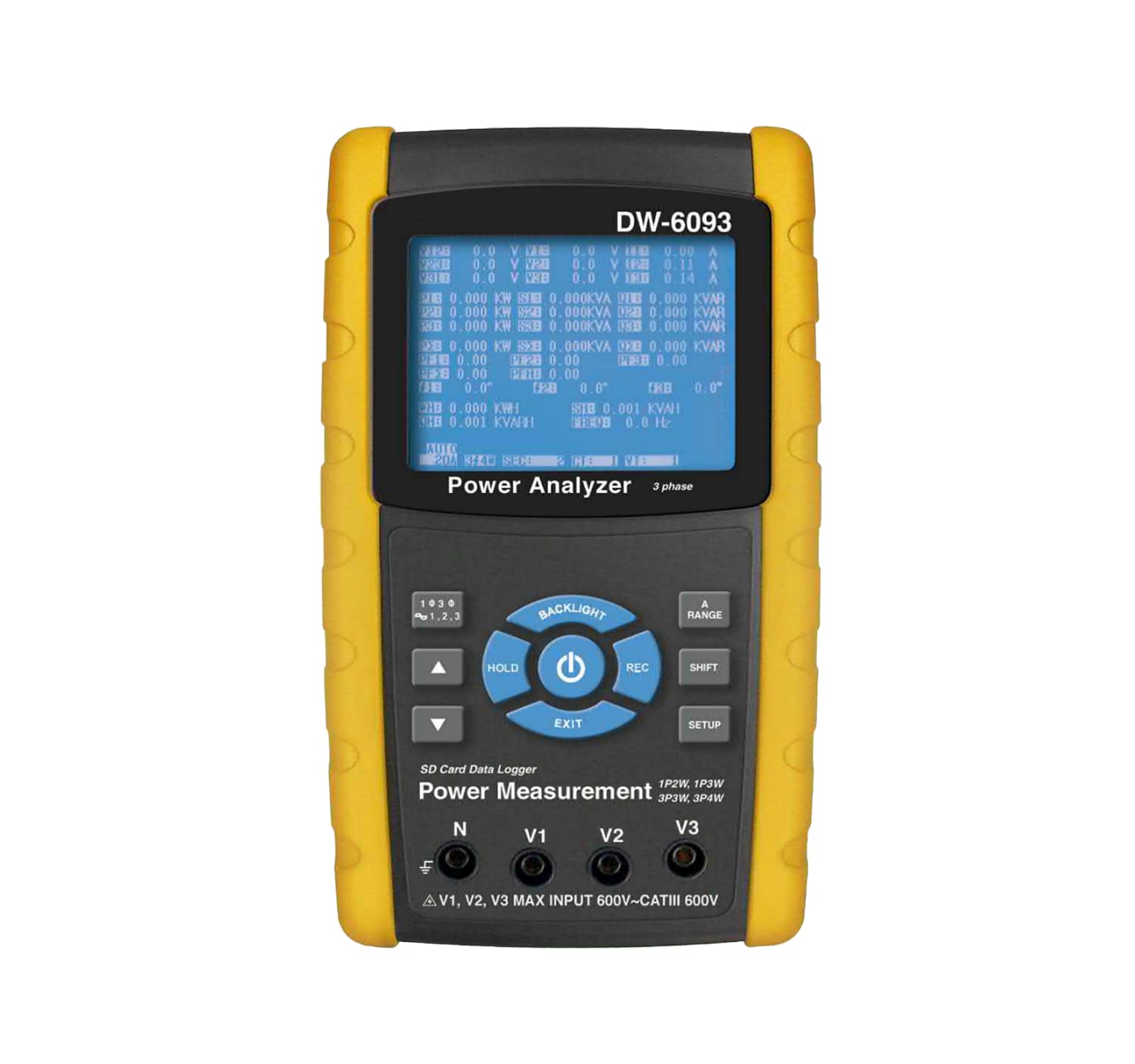

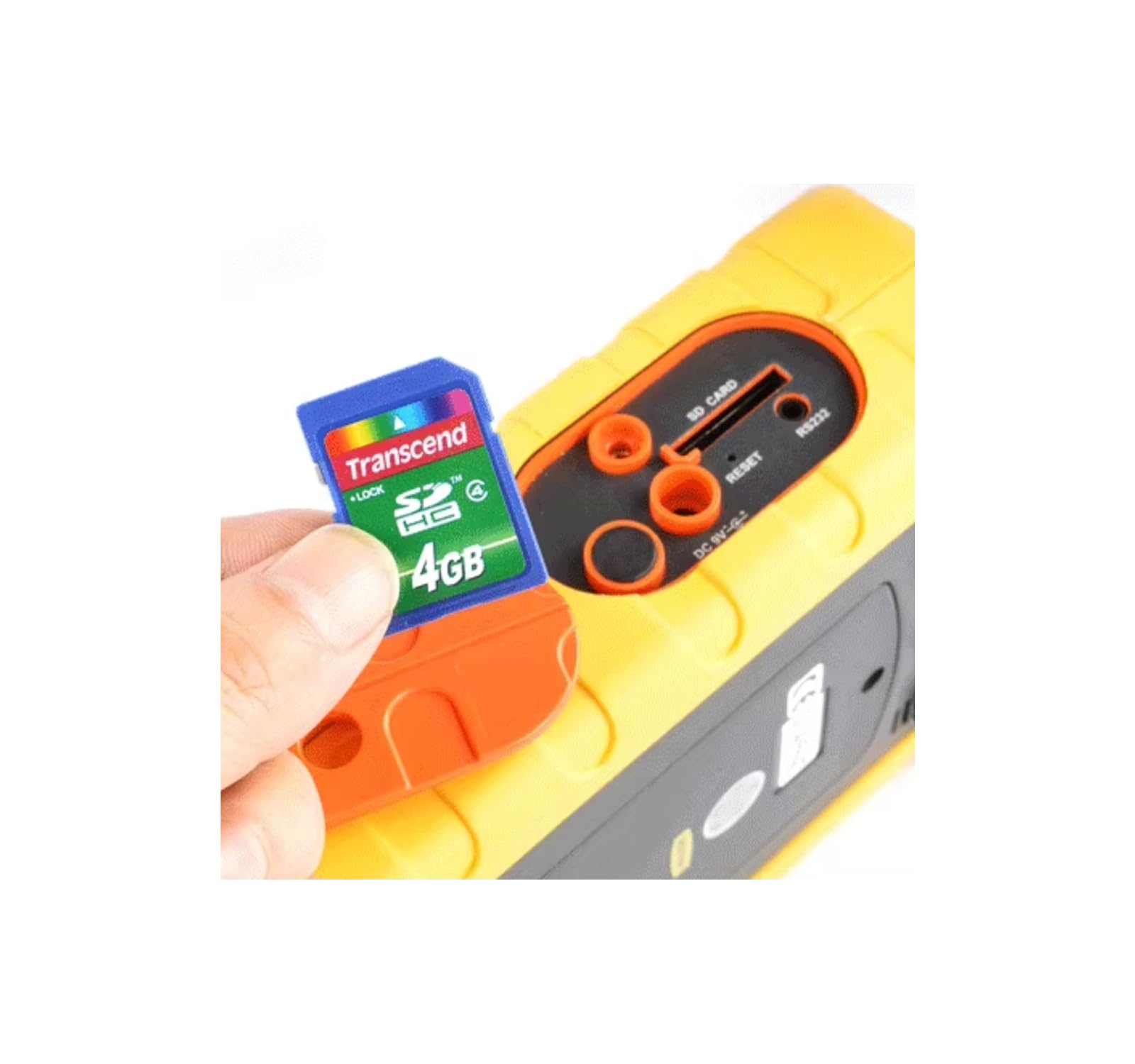

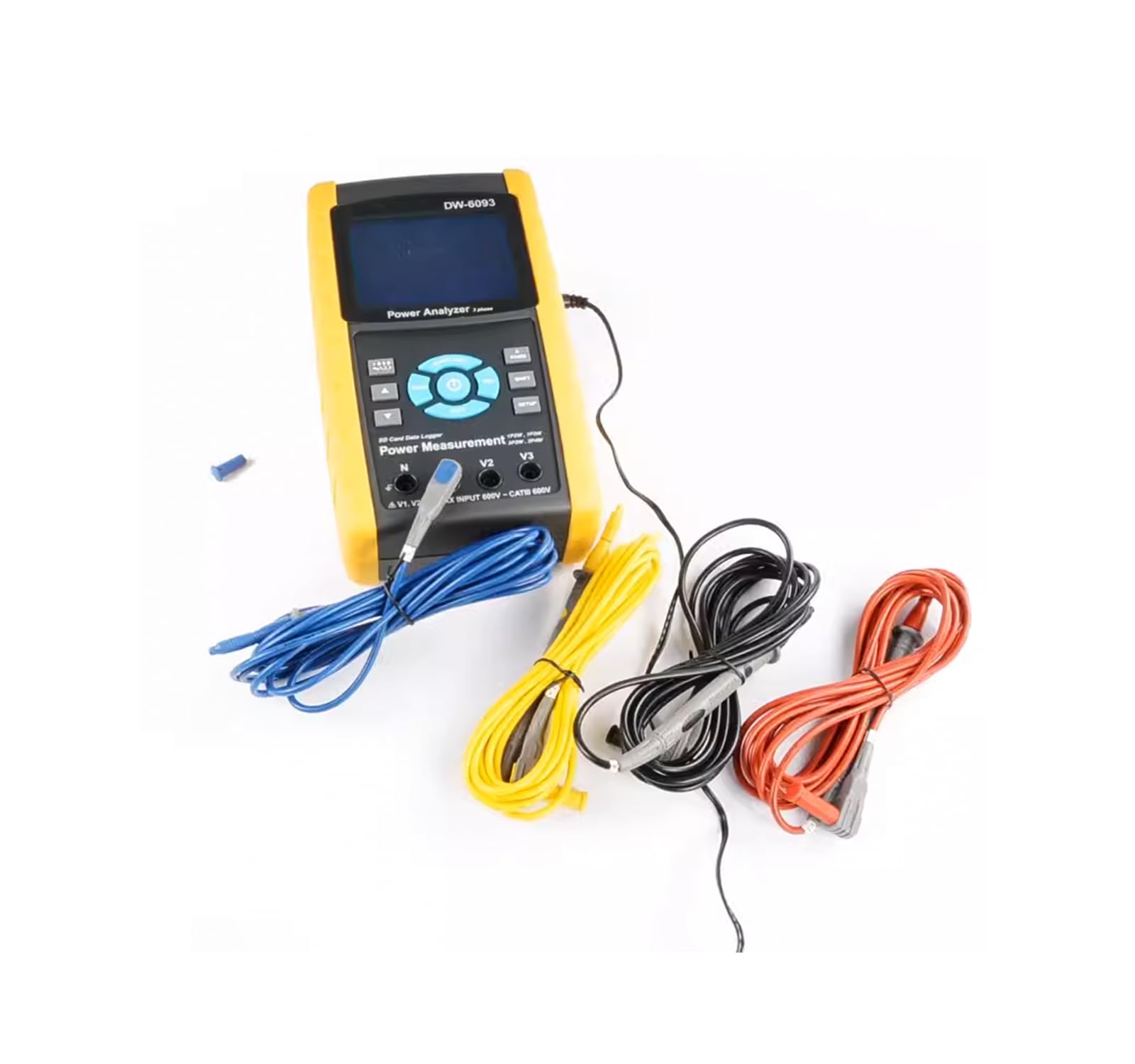

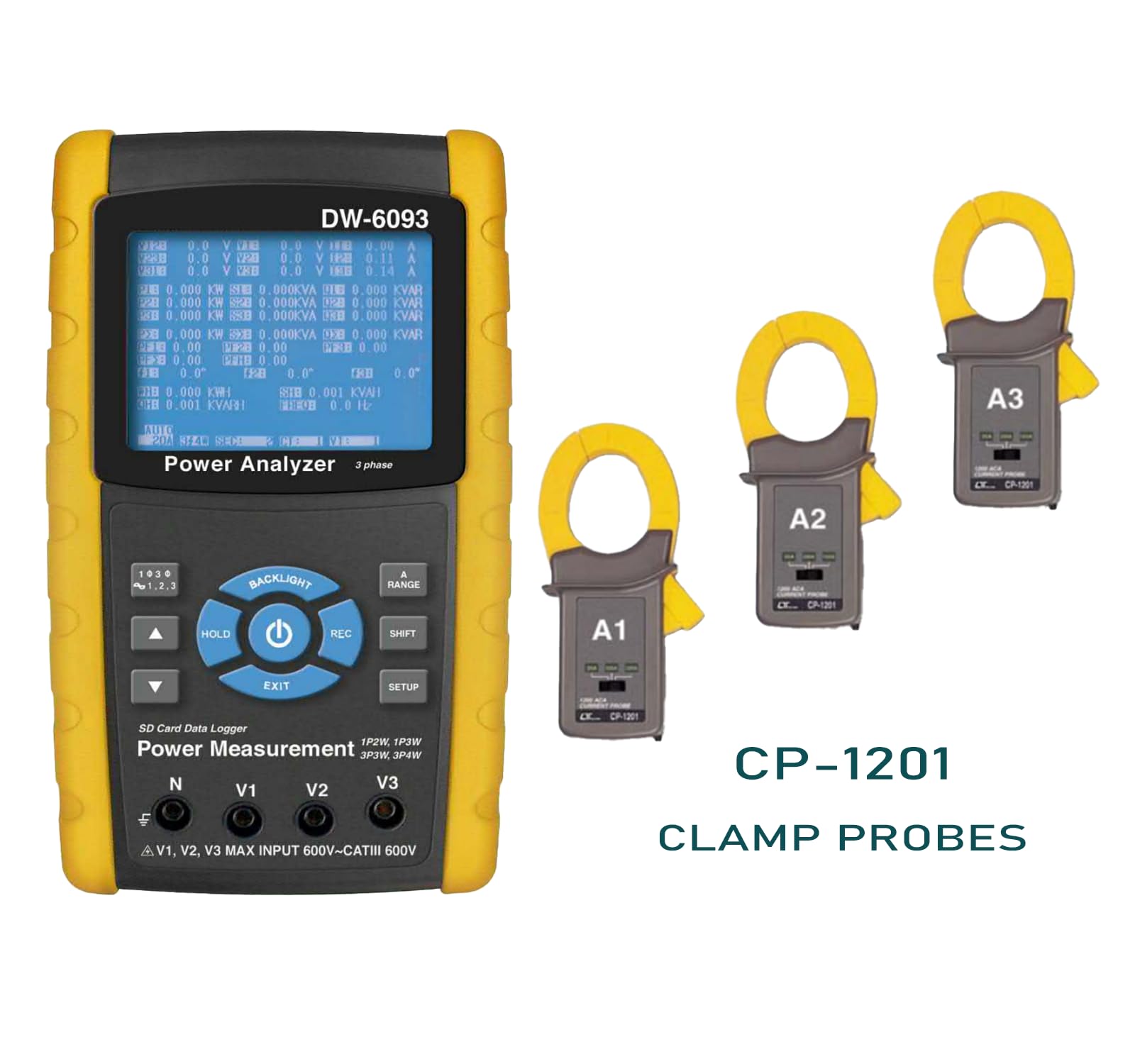

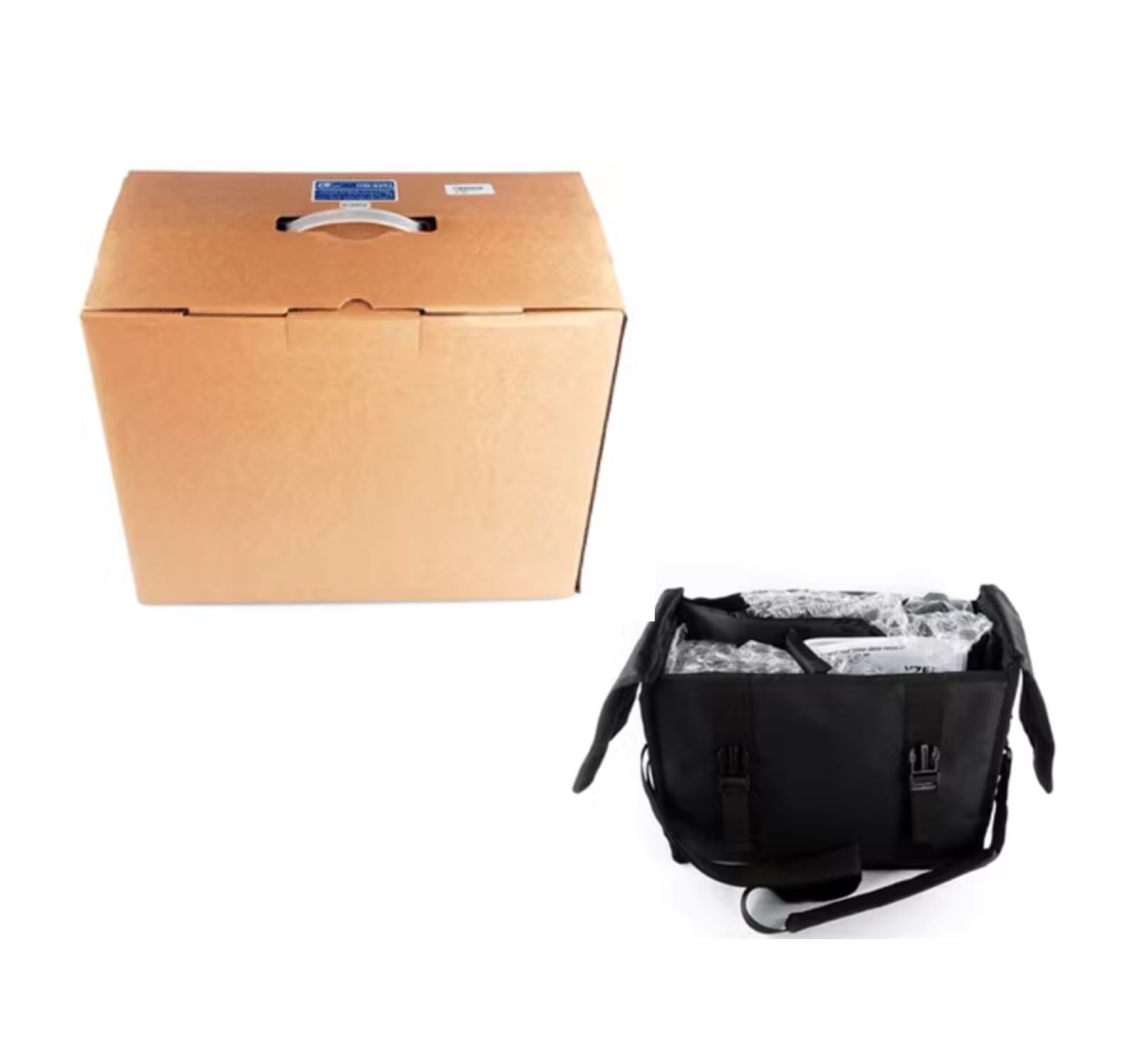

Features Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4WVoltage & Current are the True RMS value.True Power ( KW、MW、GW ) measurement. Apparent Power ( KVA、MVA、GVA ) measurement. Reactive Power ( KVAR MVAR、GVAR) measurement.Watt-Hour ( WH、SH、QH、PFH ). | Power Factor( PF )、Phase Angle( Φ ). Voltage measurement range : 10 to 600 ACVCurrent probe input signal volage ( ACV ) : 200 mV/300 mV/500 mV/1 V/2 V/3 V. Current probe input current range ( ACA ) : 20 A/200 A/1200 A (Standard CP-1201 Current Probe).Meter can cooperate the universal current probe.Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).ACV input impedance is 10 Mega ohms..Safety Standard : IEC 1010, CAT III 600VBuilt-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/data/ hour/minute/second ) to the Excel directly, then user can make the further data analysis by themselves.Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe ( CP-1201 ), AC to DC 9V adapter, 2 G SD memory card and Carrying bag.Computer data output, can cooperate with USB Cable /USB-01 RS232 cable/UPCB-02 and Data Acquisition software, SW-U811-WIN. (These accessories are optional, NOT INCLUDED in the standard package.) General Specification Circuit Custom one-chip of microprocessor LSI circuit Display * LCD Size : 81.4 X 61 mm ( 3.2 X 2.4 inch ) | * Dot Matrix LCD (320 X 240 pixels ) with back light. Measurement * ACV | * ACA | * AC WATT (True Power), AC WATT (Apparent Power), AC WATT (Reactive Power) | * Power Factor | * Phase Angle | * Frequency Wire connections 1P/2W, 1P/3W, 3P/3W, 3P/4W. Voltage ranges 10 ACV to 600 ACV, auto range. Currentprobeinputsignal&range * Current probe input signal volage ( ACV ) : 200mV/300mV/500mV/1V/2V/3V. | * Current probe input current range ( ACA ) : 20 A/200A/1200 A (Standard CP-1201 Current Probe) | * Meter can cooperate the universal current probe. Safety standard IEC1010 CAT III 600 V. ACV input impedance 10 Mega ohms. Range select ACV: Auto range. | ACA: Manual range. Clamp frequency response 40 Hz to 1 KHz. Spec. tested frequency 45 to 65 Hz. Over load protection ACV: 720 ACV rms | ACA: 1300 ACA with clamp probe (* For the Clamp ,CP-1201) Over Indicator * LCD display show " OL ". | * The data save into the SD card will show " 9999 " or " 999 " ( overleap the decimal point ). Under Indicator * LCD display show " UR ". | * The data save into the SD card will show " 9999 " or " 999 " ( overleap the decimal point ). Data Hold Freeze the display reading. Data Record SD Card Record. Sampling Time Approx. 1 second. Power ON/OFF Manual OFF by push button. Real time data logger * Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/ hour/minute/second ) down load to the Excel | * Sampling time for data logger : 2 seconds to 7200 seconds, the during of setting step are 2 seconds. Data Output USB/RS232 RS232 computer serial interface : * Connect the optional USB cable USB-01 will get the USB plug. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. (Optional Accessories) Operating Temperature 0 to 50°C ( 32 to 122°F ). Operating Humidity Less than 80% R.H.. Power Supply * DC 1.5V, AA ( UM-3 ) Battery X 8 PCs (Alkaline or heavy-duty battery). | * AC to DC 9V power adapter. Power Consumption * Meter : 300 DCmA. | * Clamp : 34 DCmA. Clamp max. conductor Size 50 mm ( 2.0 inch ) Dia. ( For the Clamp ,CP-1201) Weight * Meter : 948g ( includes batteries ) ｜ * Clamp ( includded cable ) : 467g Dimension Meter : 225 X 125 X 64 mm ( 8.86 X 4.92 X 2.52 inch ) ｜ Clamp : 210 X 64 X 33mm ( 8.3 X 2.5 X 1.3 inch ) Accessories Included * Instruction manual............... 1 PC * Test Leads (TL88-4AT)...........1 Set (4 PCs) * Alligator clips (TL88-4AC) 1 Set (4 PCs) * Clamp Probe ( CP-1201 )........3 PCs * AC to DC 9V adapter..............1 PC * SD card .............................. 1 PC * Carrying bag......................... 1 PC Optional Accessories * 2000 Amp current probe, CP-2000 * 200 Amp current probe, CP-200 * Flexible 3000 Amp current probe, CP-3000 * USB Cable , USB-01 * RS232 cable, UPCB-02 * Data Acquisition software, SW-U811 Electrical Specifications: DW-6093+CP-1201 DW-6093+CP-2000 DW-6093+CP-3000 DW-6093+CP-6001 Add to Cart Add to Cart Add to Cart Add to Cart Price $1,999.00$1,999.00 $2,250.00$2,250.00 $2,499.00$2,499.00 $2,999.00$2,999.00 Standard Current Probe CP-1201 CP-2000 CP-3000 Flexible Current Probe CP-6001 Flexible Current Probe Current Range 20A/200A/1200A 20A/200A/2000A 30A/300A/3000A 60A/600A/6000A Output Sensitivity 10 mV/A, 1 mV/A, 0.1 mV/A 100 mV/A, 10 mV/A, 1 mV/A 100 mV/A, 10 mV/A, 1 mV/A 50 mV/A, 5 mV/A, 0.5 mV/A Output Voltage 200 ACmV ( 20 A. 200 A ), 120 ACmV ( 1200 A ) 2 ACV ( 20 A, 200 A, 2000 A ) 3 ACV ( 30 A, 300 A, 3000 A ) 3 ACV ( 60 A, 600 A, 6000 A ) Max. Conductor Size 48 mm ( 1.9 inch ) Dia. 51 mm ( 2.1 inch ) Dia. Flexible Probe Length : 600 mm ( 23.6 inch ) Flexible Probe Length : 900 mm ( 35.4 inch )
