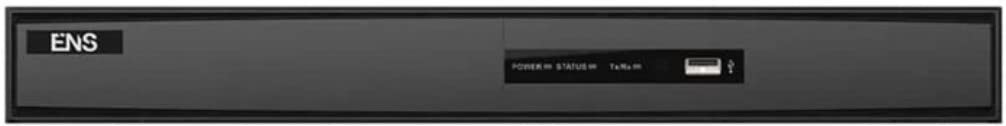

ENS SD2216/24I-K 16-Channel 5MP All-in-One Turbo HD Digital Video Recorder, Up to 24 IP Cameras Input, 96Mbps Bandwidth, H.265, 5MP Lite@15FPS, 2MP@30FPS, HDMI/VGA/CVBS, 2 SATA Key Features - Up to 24-Ch IP camera inputs (up to 6 MP) Must enable Advanced IP Mode - Max. 800m for 1080p and 1200 m for 720p HDTVI signal transmission - Up to 10 TB capacity per HDD - H.265 Pro can be enabled to improve encoding efficiency and reduce data storage costs - Full channel recording at up to 4 MP lite resolution - Smart search for efficient playback - Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) - Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras - Support 4-ch line crossing detection and intrusion detection, sudden scene change detection; Only support 2MP (or less than 2) signal input CVBS output will be unavailable - ENS Vision & DDNS (Dynamic Domain Name System) for easy network management - Max. 96Mbps incoming bandwidth and output bandwidth limit configurable Specifications - Video Compression: H.265+/H.265/H.264+/H.264 - Audio Compression: G.711u - Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ) - CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704x576, NTSC: 704x480 - HDMI/VGA Output: HDMI: 1-ch, 4K 3840x2160 / 30Hz (Max.), VGA: 1-ch, 1920x1080 / 60 Hz (Max.) - Video Bitrate: 32 Kbps~6 Mbps - Audio Output: 1-ch, RCA (Linear, 1 KΩ) - Audio Bitrate: 64 Kbps - Dual Stream: Support - Synchronous Playback: 16 - Interface: 1x RJ-45 (10/100/1000 Mbps) (Self-adaptive Ethernet) - Two-Way Talk: 1 Channel, RCA ( 2.0 Vp-p, 1 kΩ ) - USB: Front: 1x USB 2.0 / Rear: 1x USB 3.0 - Remote connection: 128 - Power Supply: 12V DC - Power Consumption ≤ 25W - Operating Conditions -10°C~55°C/Less than 90% RH - Dimensions: 15.0"x12.6"x1.9" - Weight: 4.4 lb
